Odyssey Clutch Freecoaster Hub Parts v1/v2

Odyssey Clutch Freecoaster Hub Parts v1/v2

Options MSRP

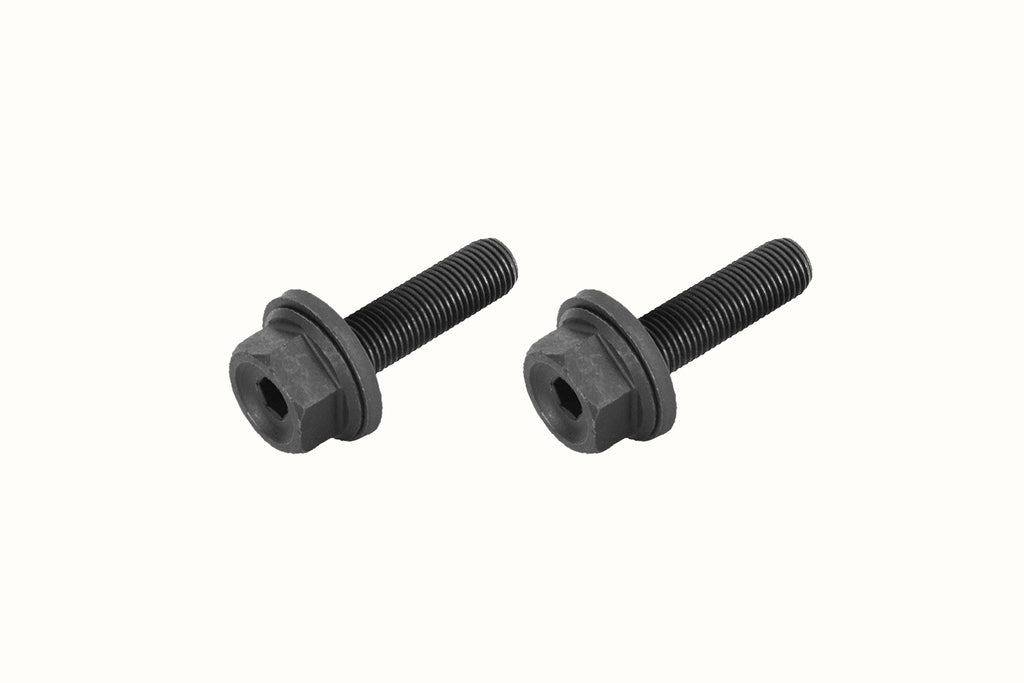

14mm Axle Bolts (Pair) $7.99 SKU: GSWH-705-07
3/8" Axle Bolts (Pair) $7.99 SKU: GSWH-705-06

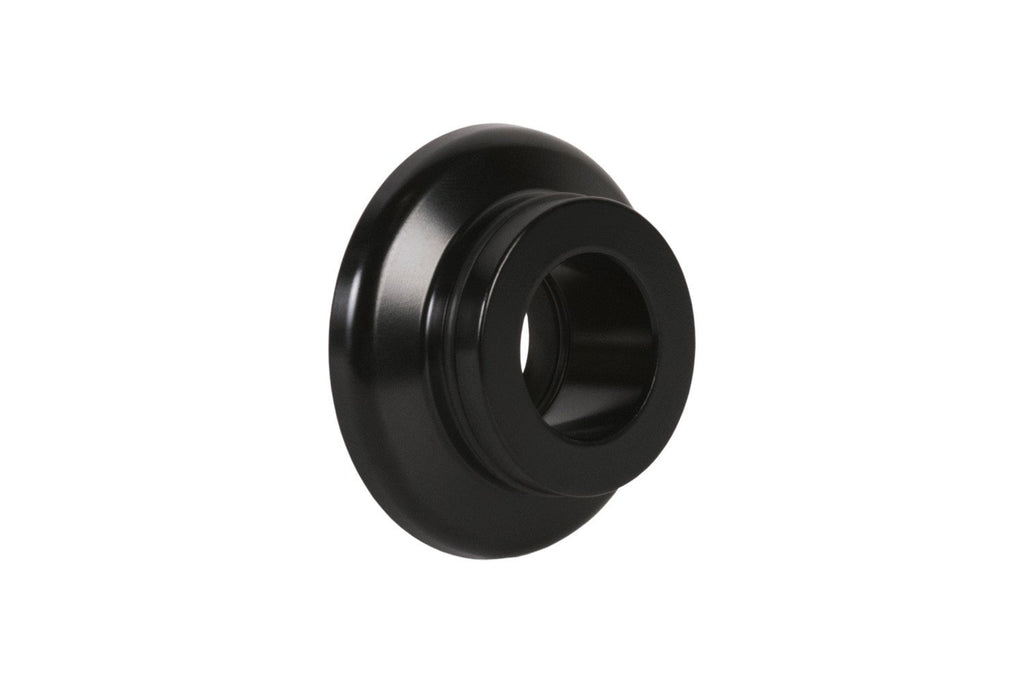

Plastic v2 Hub Guard $9.99 SKU: W-442-BK
Alloy v2 Hub Guard $26.99 SKU: W-444-BK
Non-Drive Side Collar $9.99 SKU: w-443-06

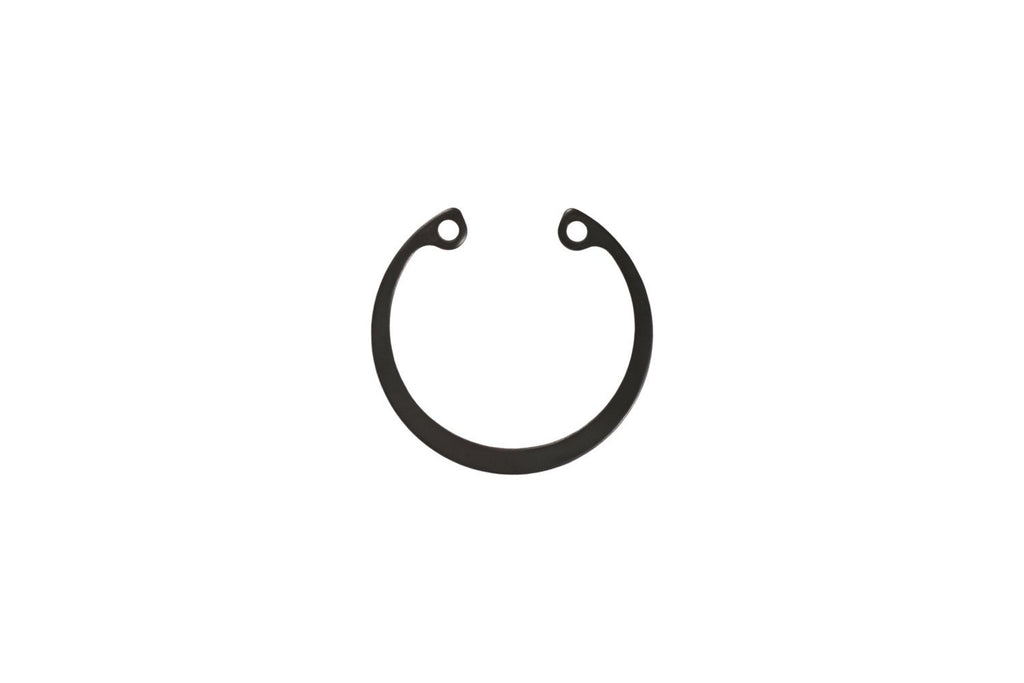

Non-Drive Side Circlip $1.99 SKU: w-443-07
Non-Drive Side Sealed Bearing $6.99 SKU: w-443-09
Cover Slack Port v1 Band $6.99 SKU: W-450-06
Cover Slack Port v2 Band $6.99 SKU: W-443-08

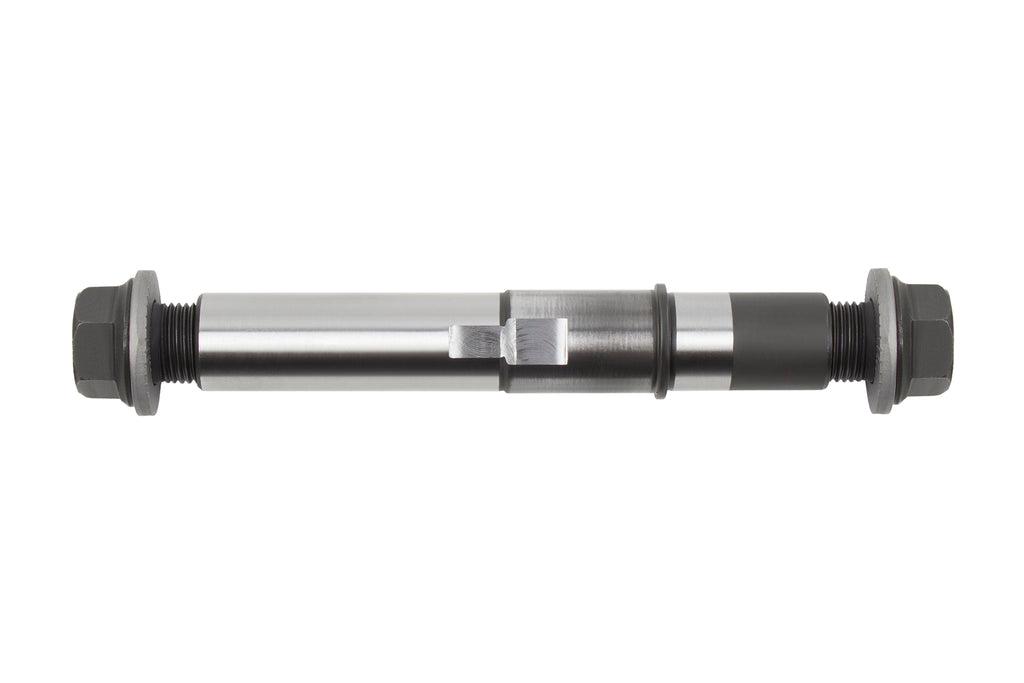

14mm Chromoly Axle $34.99 SKU: w-450-02
Max Slack Adjuster $3.50 SKU: w-443-17
Helical Slack Adjuster $3.50 SKU: w-443-15
Slack Adjustment Screw $1.99 SKU: w-443-11
Drag Mechanism $9.99 SKU: w-443-14
RHD Engagement Cone $16.99 SKU: w-450-07
LHD Engagement Cone $16.99 SKU: w-450-08
Drive Side Sealed Bearing $9.99 SKU: w-443-10
9t RHD v2 Driver $44.99 SKU: w-450-03
9t LHD v2 Driver $44.99 SKU: w-450-04

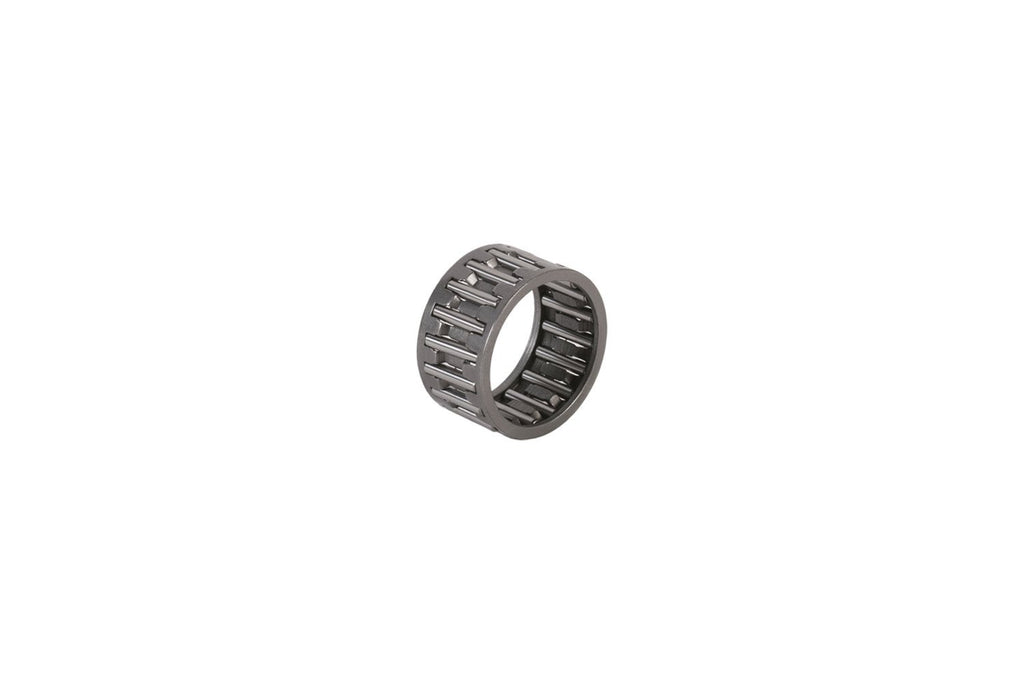

Drive Side Needle Bearing $6.25 SKU: w-443-16

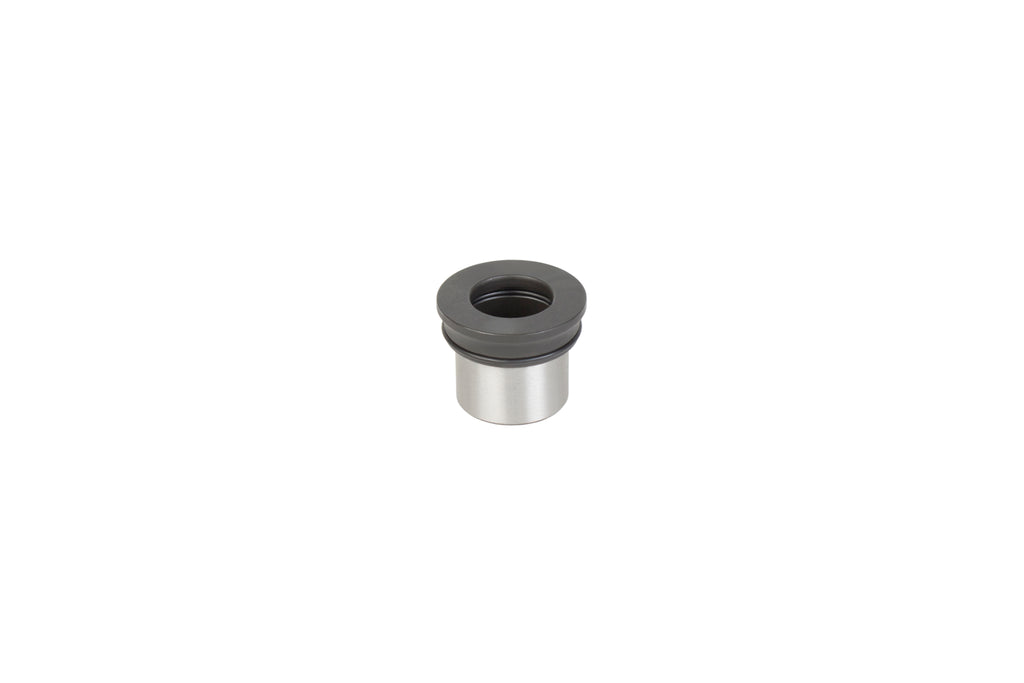

Drive Side v2 Collar $9.99 SKU: w-450-05
Drive Side v1 Collar $12.99 SKU: W-443-05

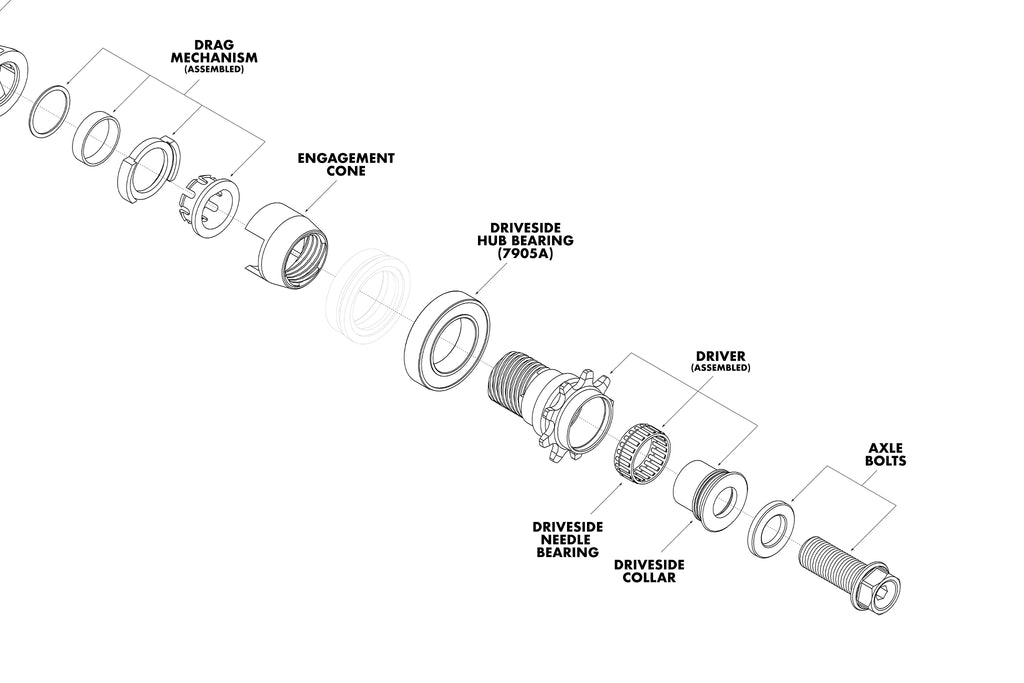

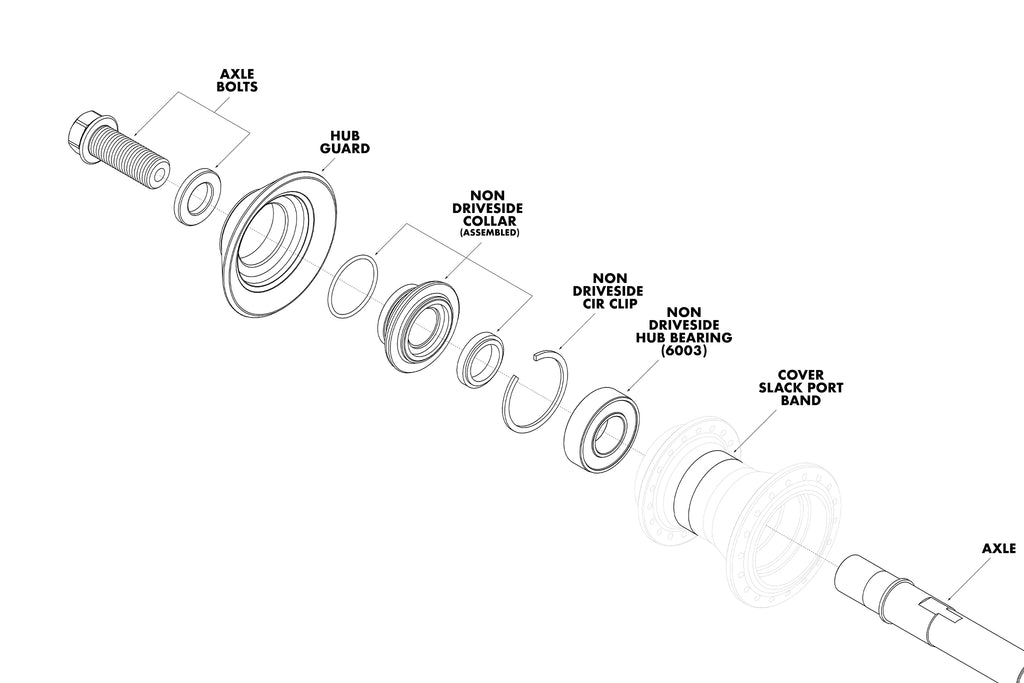

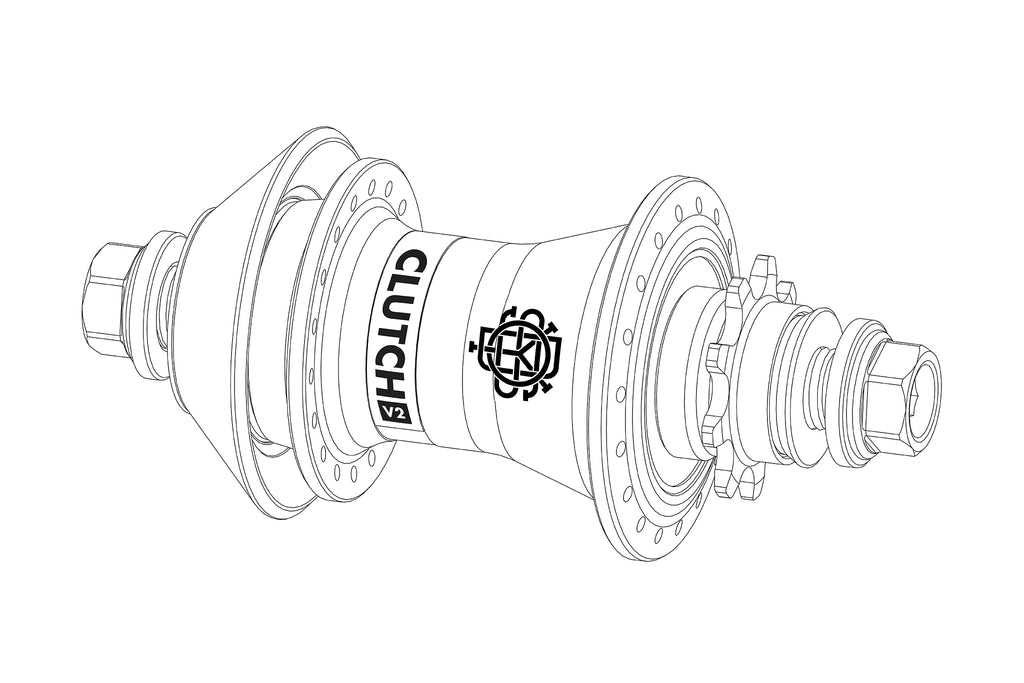

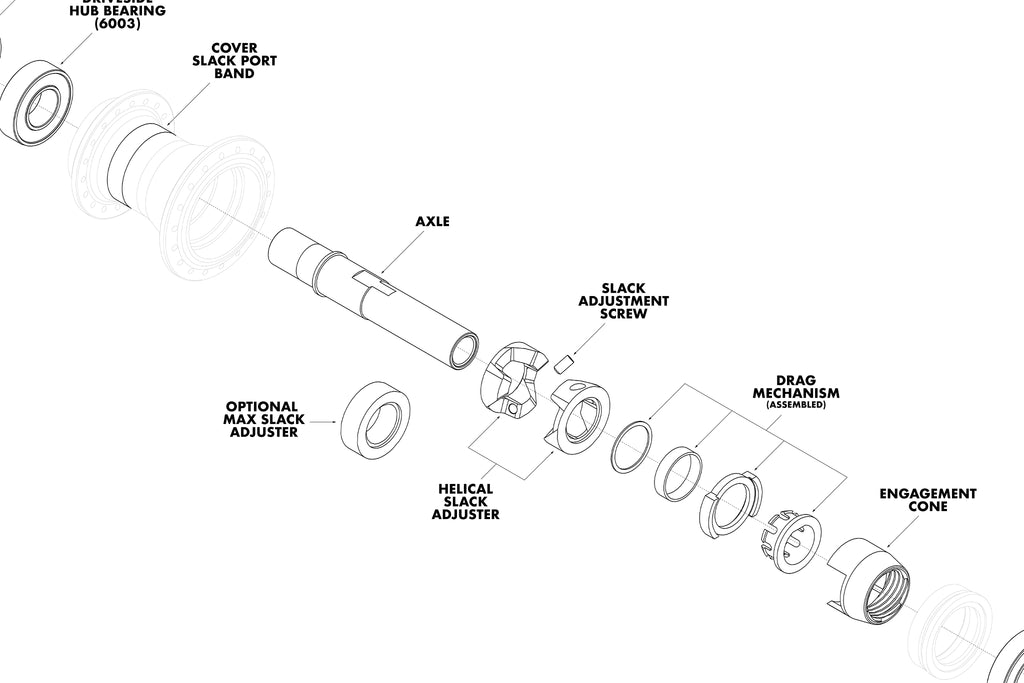

Replacement parts for Odyssey Clutch v1/v2 Freecoaster Hub. Version specific parts are noted. Diagrams above illustrate v2.

Parts List

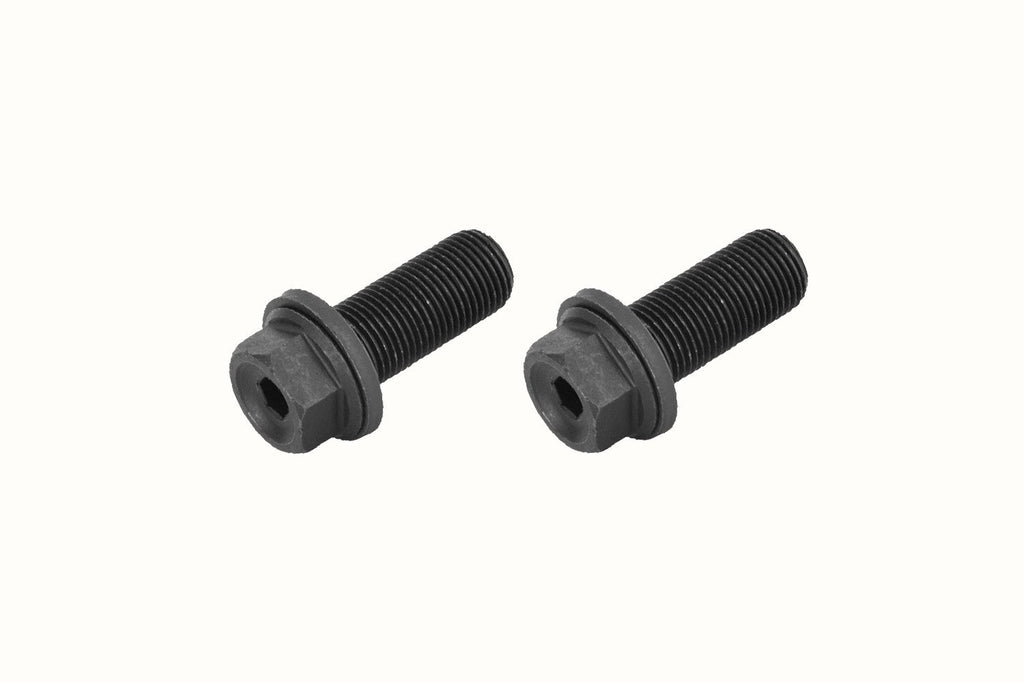

  • 14mm Axle Bolts (Pair)
    Pair needed for v2
    1 needed for non-drive side of v1
  • 3/8" Axle Bolts (Pair)
    1 needed for drive side of v1

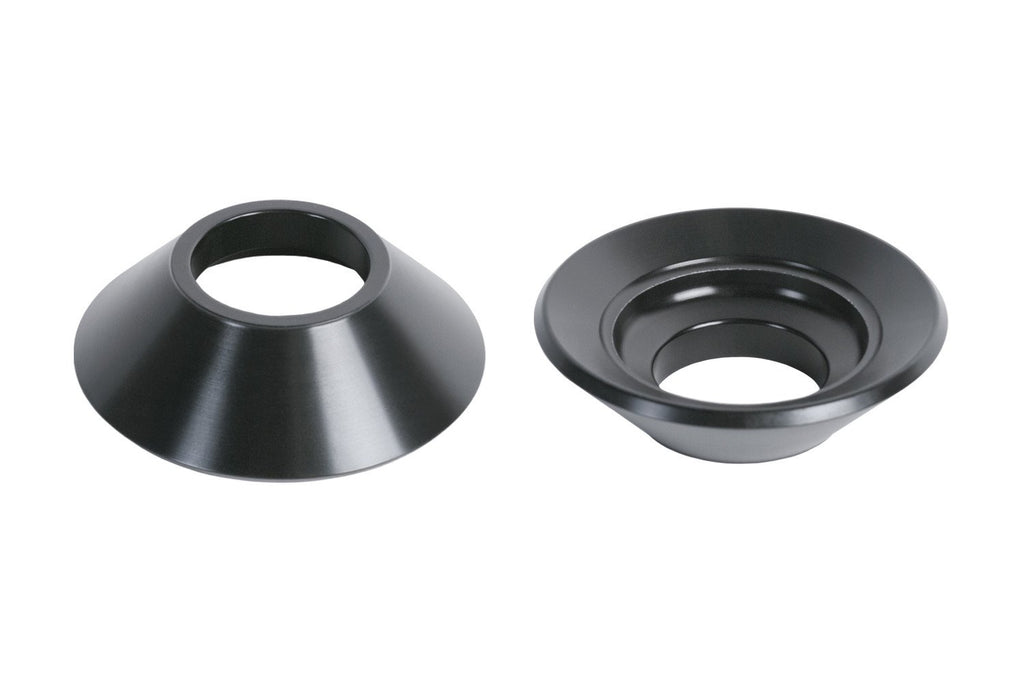

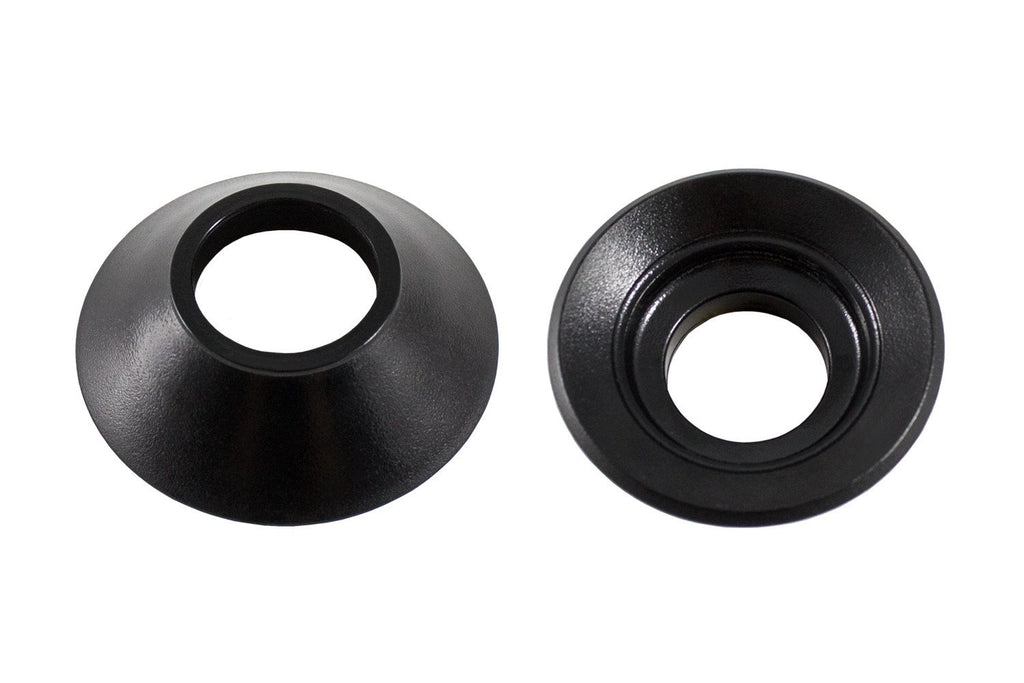

  • v2 Hub Guards (Alloy or Plastic)
  • Non-Drive Side Collar
  • Non-Drive Side Circlip

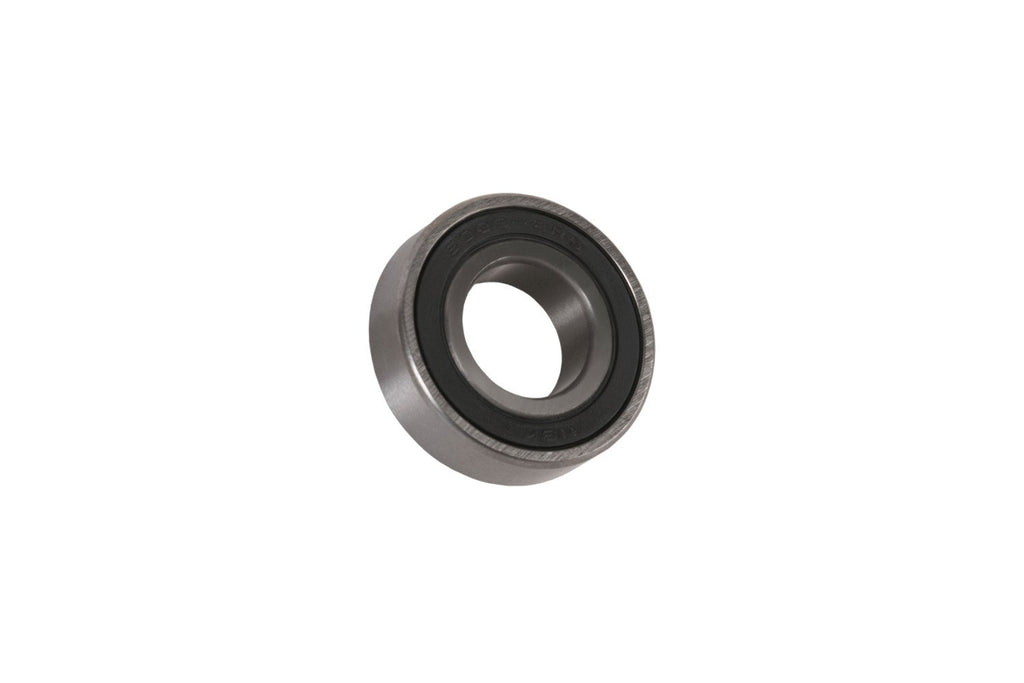

  • Non-Drive Side Sealed Bearing (6003)

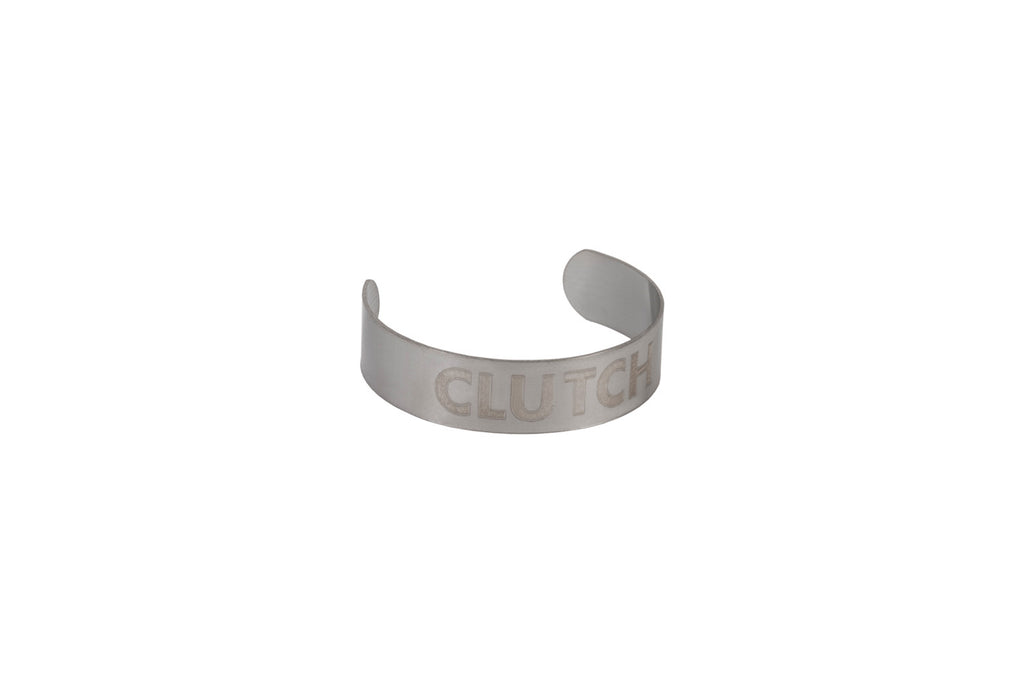

  • Cover Slack Port v1 Band

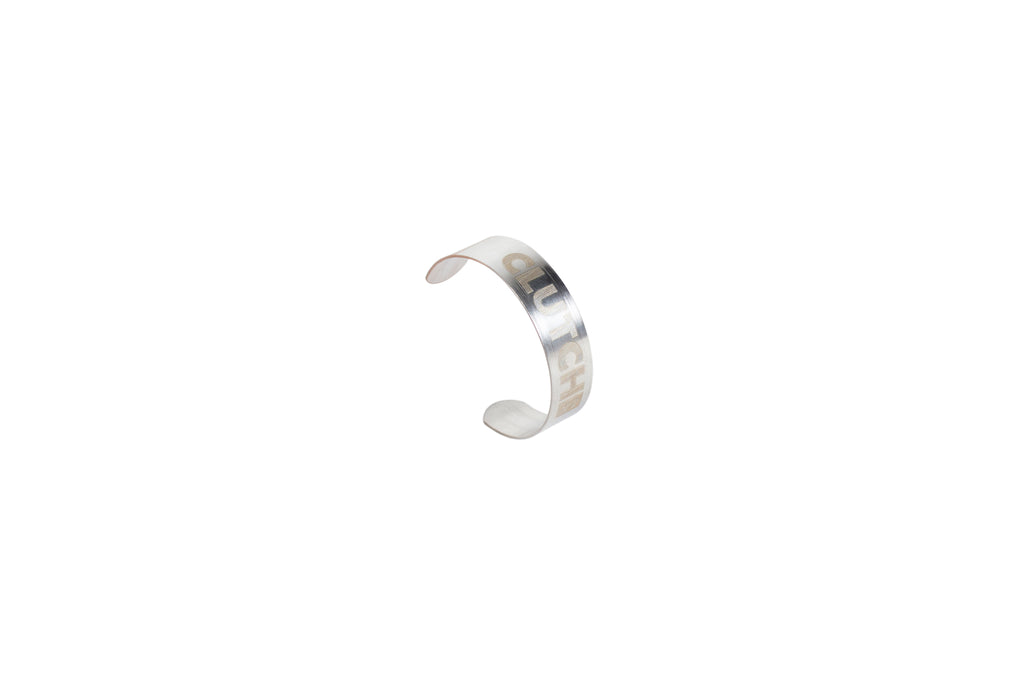

  • Cover Slack Port v2 Band (Same as v1, but with v2 etching)
  • 14mm Chromoly Axle with Bolts (v2 Only)

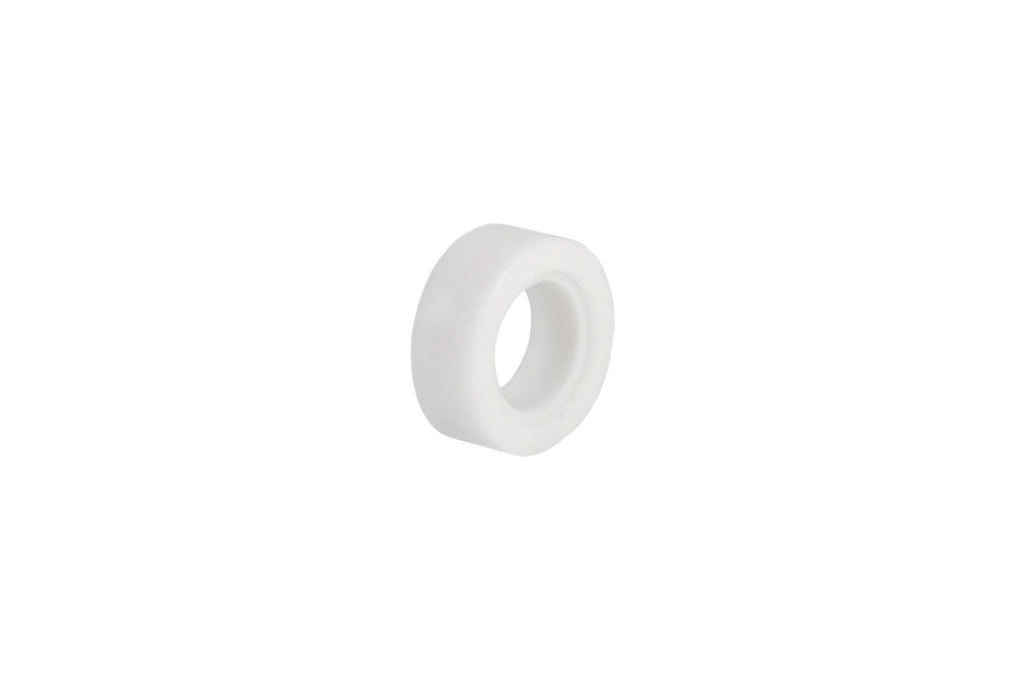

  • Max Slack Adjuster (Optional)

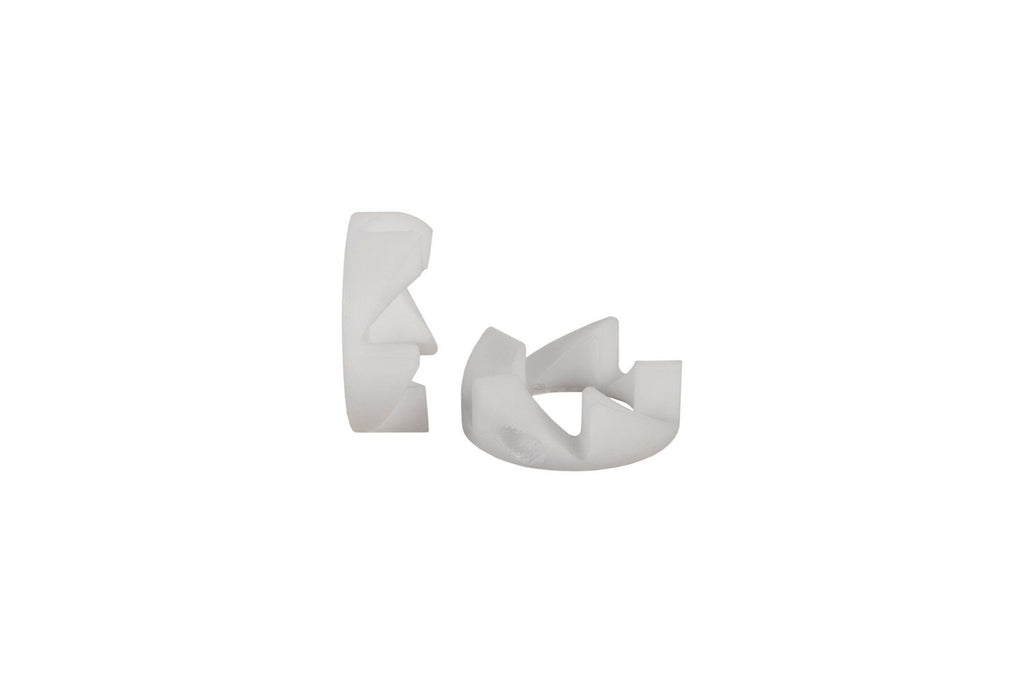

  • Helical Slack Adjuster

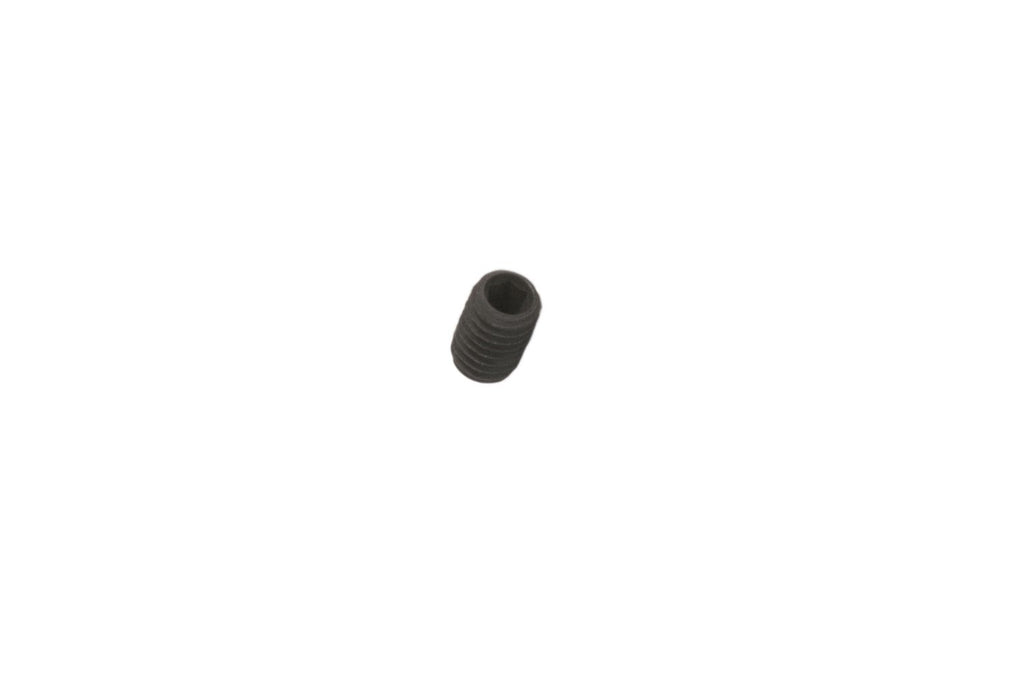

  • Slack Adjustment Screw

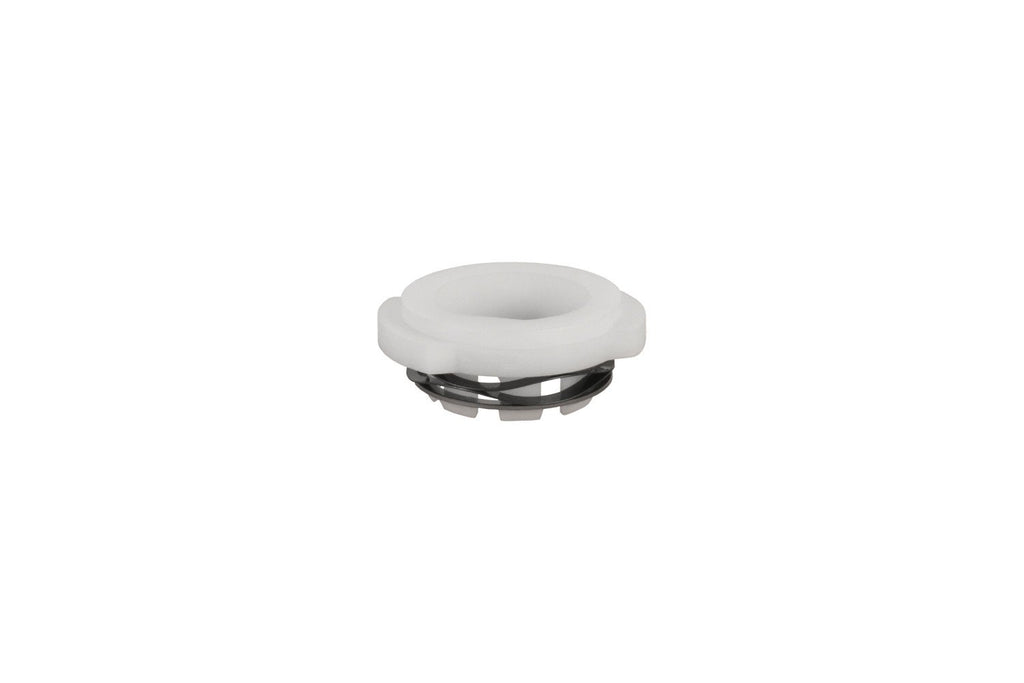

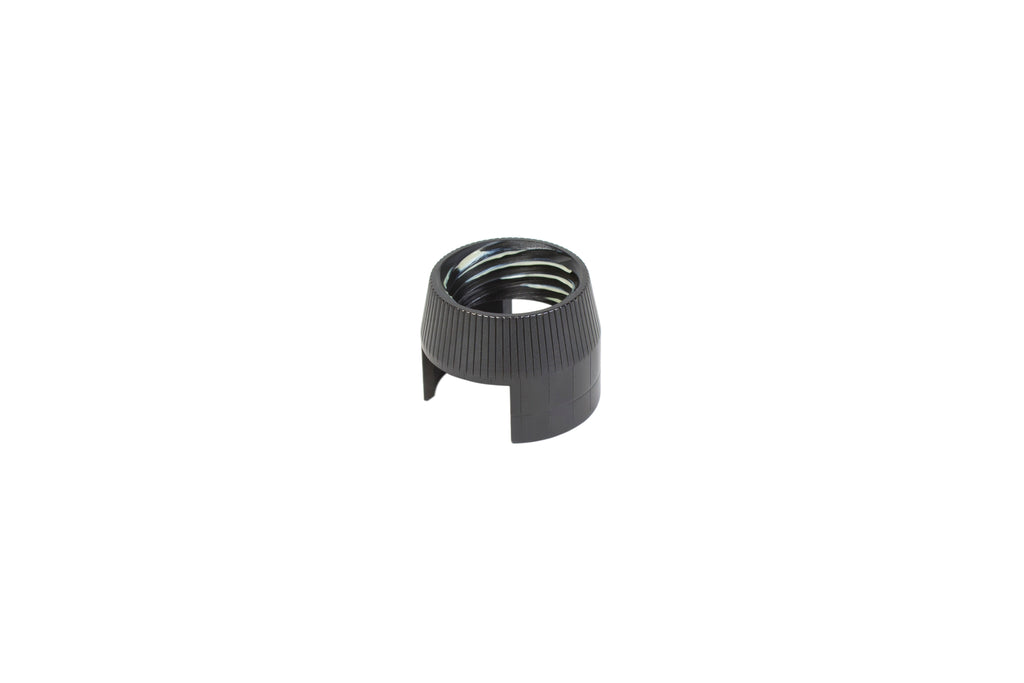

  • Drag Mechanism (Assembled)
  • RHD Engagement Cone
  • LHD Engagement Cone

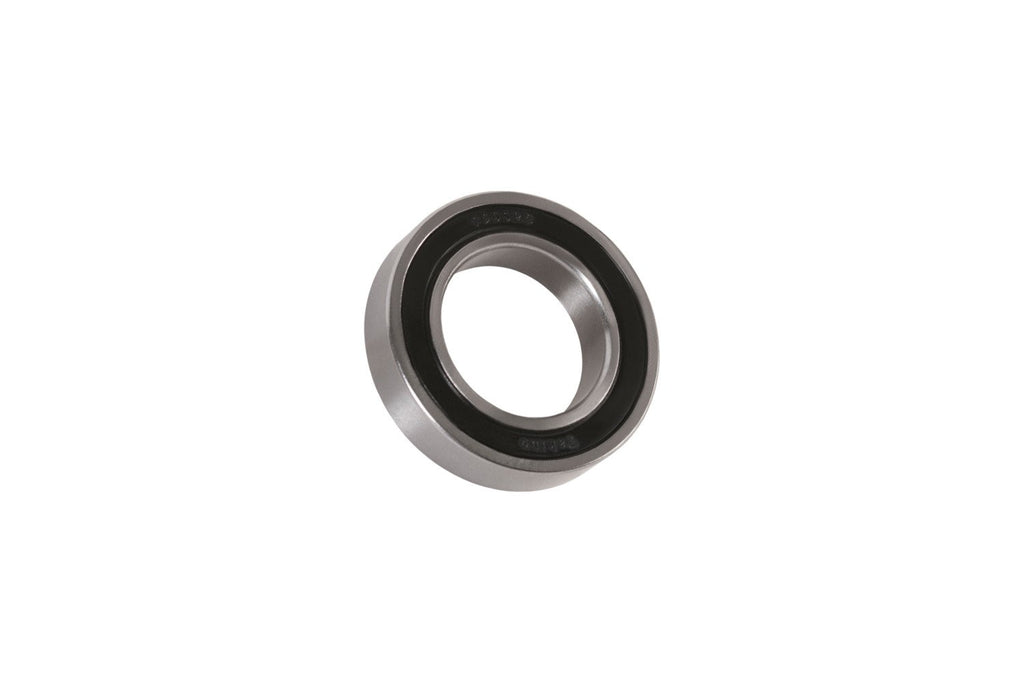

  • Drive Side Sealed Bearing (7905A)

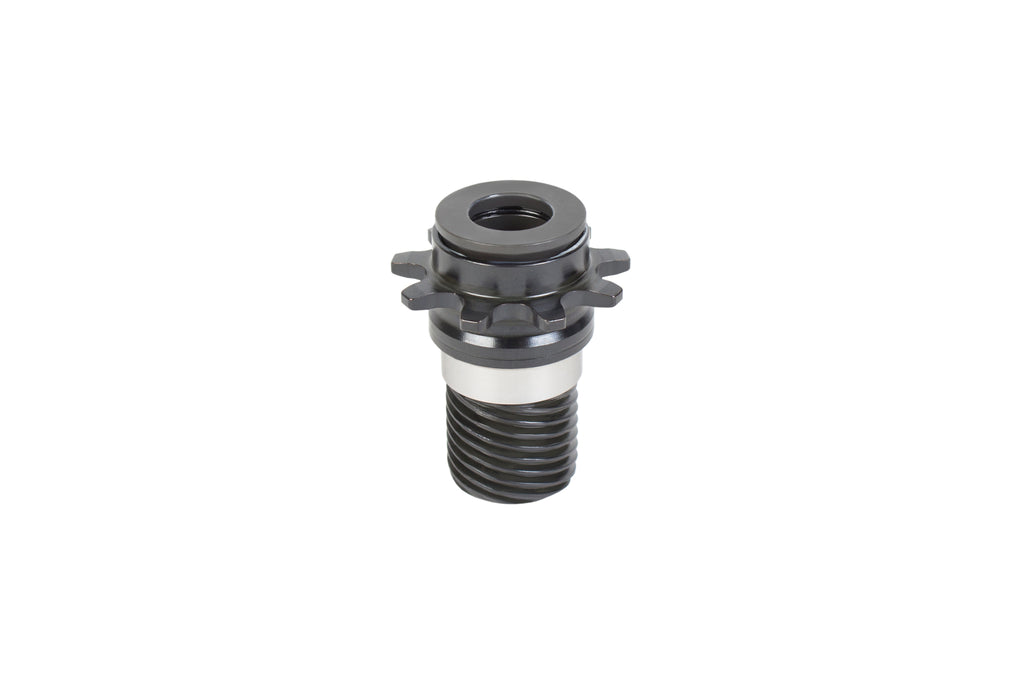

  • RHD 9t v2 Driver (Assembled)
  • LHD 9t v2 Driver (Assembled)
  • Drive Side Needle Bearing

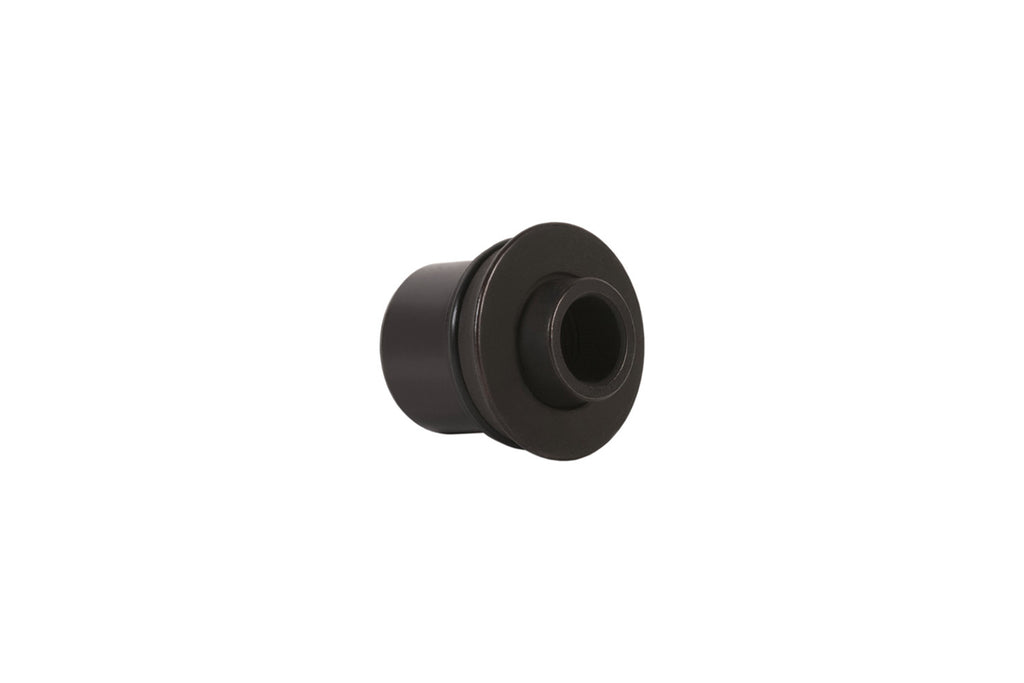

  • Drive Side v2 Collar
  • Drive Side v1 Colar
