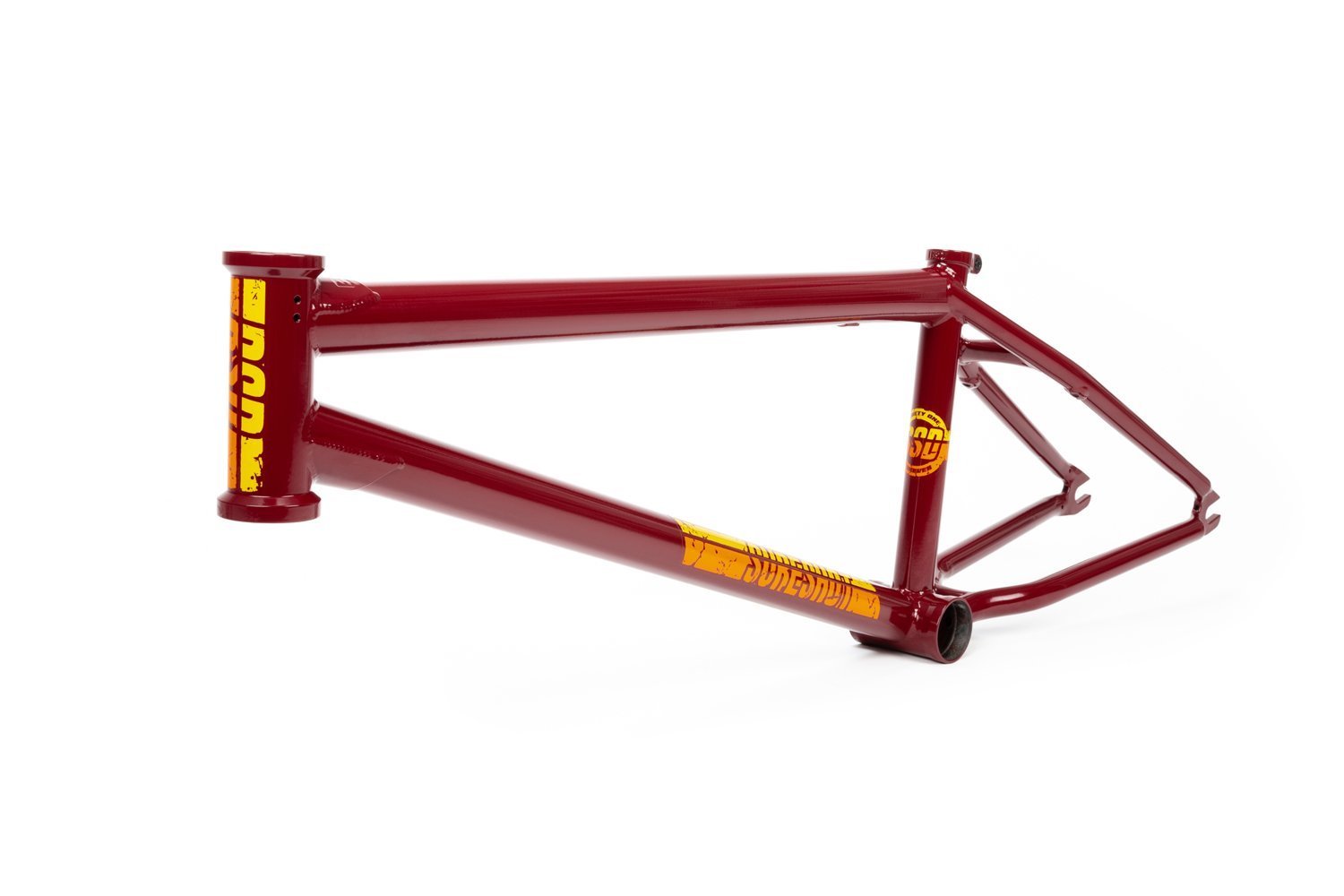

BSD Sureshot Frame Burgundy
BSD Sureshot Frame Burgundy MSRP: $ 359.99
The Sureshot is designed with a more ramp/park/trails geometry than our other frames. Utilizing a low BB, longer rear end, mellower head angle and removable brake lugs, this frame is a true all rounder.
Built for high speed roasting! 'cause you can't, you won't, and you don't stop.
- Sanko Japanese seamless 4130 CrMo triple butted tubing

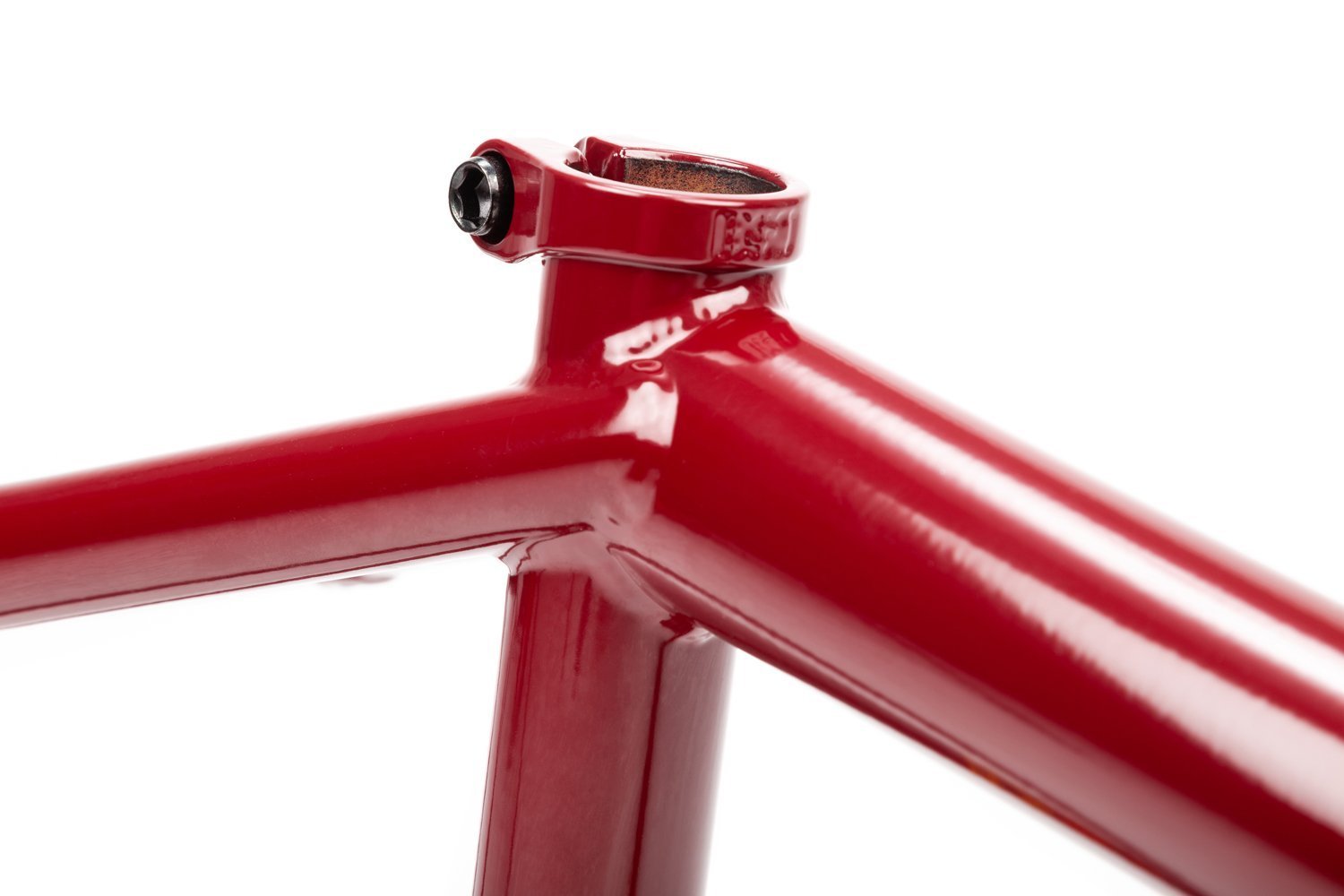

- Invest Cast Seatclamp: The invest cast seatclamp is brazed onto the frame so there's no need for a separate clamp. Also the slot cut beneath the seatclamp gives more clamping power less torque on the bolt.
- Invest Cast Dropouts: Because the dropout is cast as one piece it's much stronger than a plate welded to a tube. 7mm thick to provide good support for your axle, and the small shape has been designed for grinding meaning there's no overhang to catch on ledges or rails, also the dropout is heat treated before welding making it extra tough. And finally there's an integrated chain tensioner bolts inside.

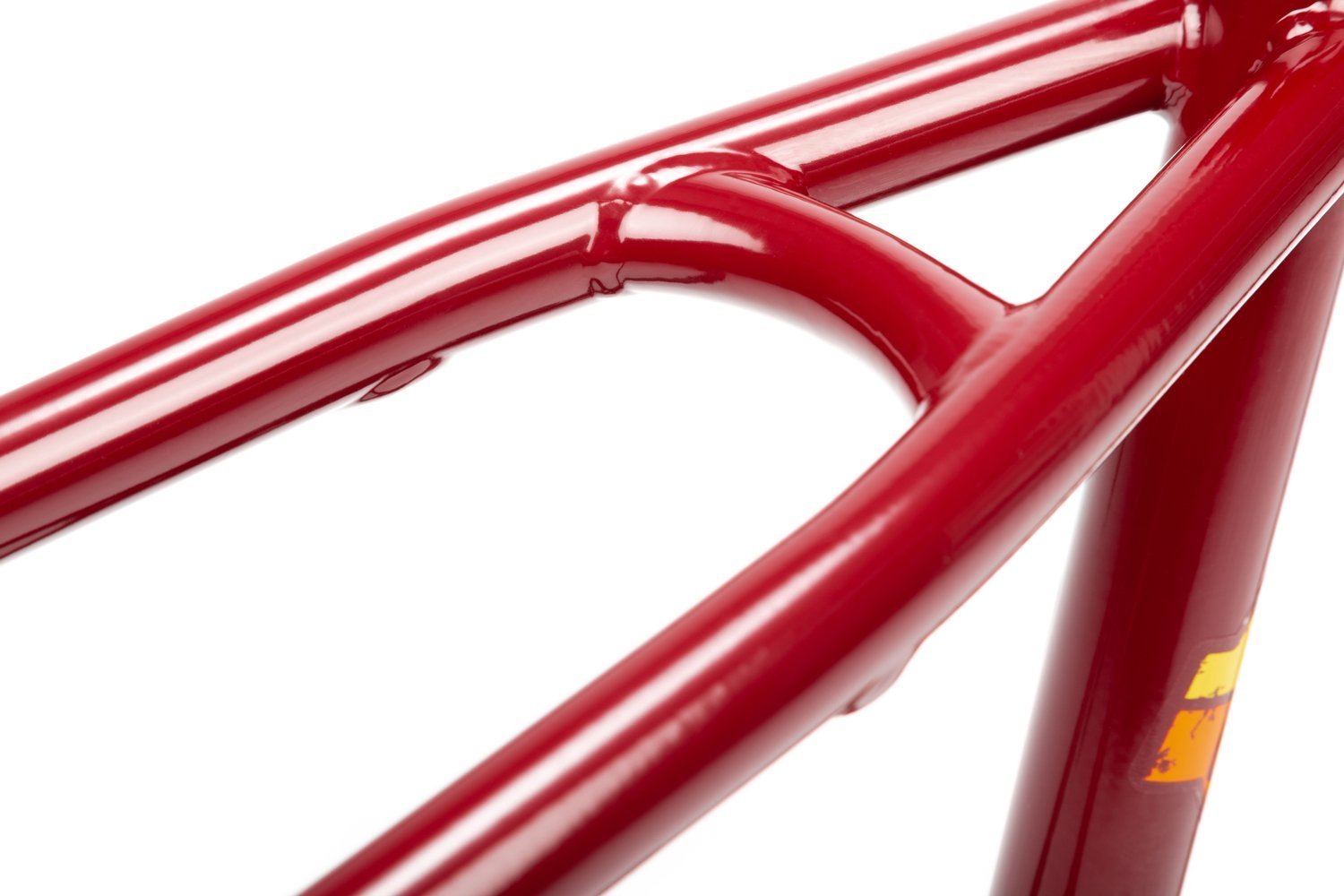

- Invest Cast Seatstay Bridge: We've used a new heat treated invest cast seatstay bridge on the Sureshot frame which offers a stronger and stiffer rear end.
Top Tube Lengths: 20.7", 21", 21.3", or 21.7"
Head Tube Angle: 74.75°
Head Tube Length: 117mm
Seat Tube Angle: 71°
Chainstay Length: 13.4 - 13.9"
BB Height: 11.5"
Standover height: 9"
*BSD brake mount kit available separately.
